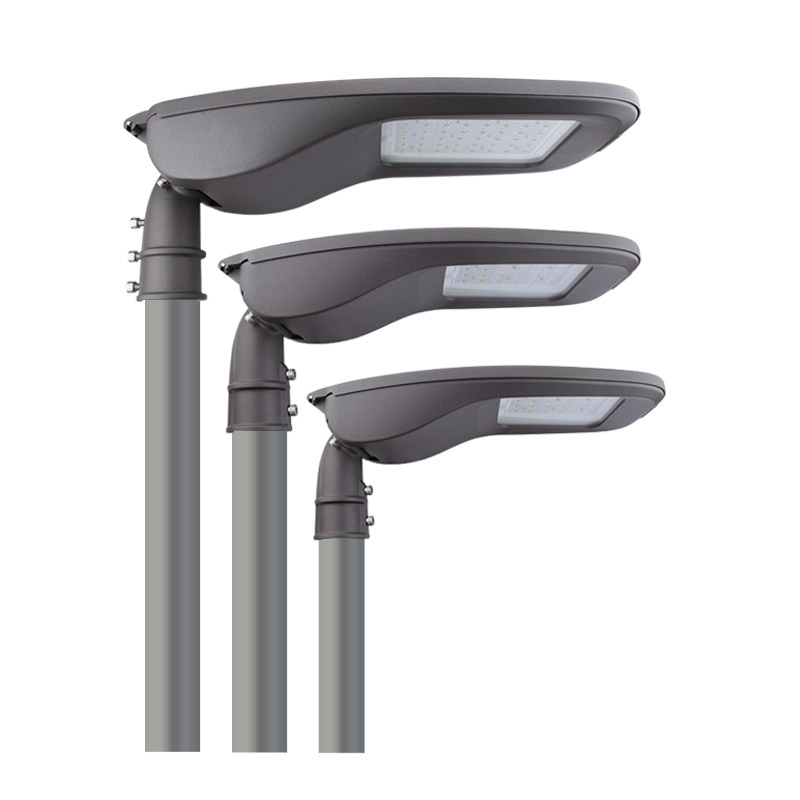

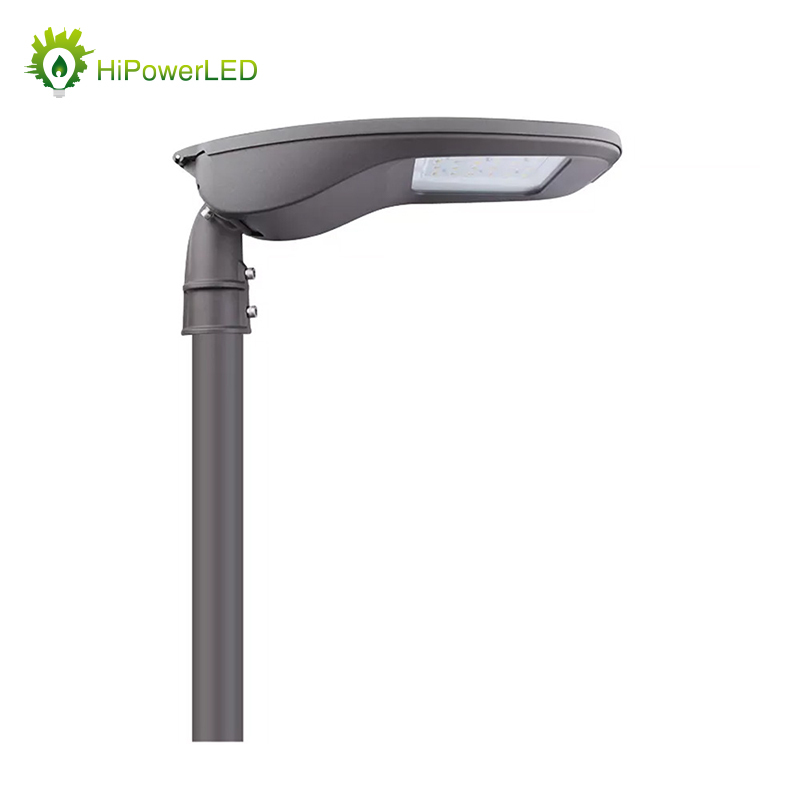

Outdoor IP66 40W-200W Led street light

Model: SL32
Power watts: 40W, 50W, 60W, 80W, 100W, 120W, 150W, 200W
Light efficiency: 150lm/W
IP66 waterproof
5 years warranty
Description Product Data Test report Packaging


     • Streamline design
     • No worry on any dust and birds droppings
     • 150lm/W efficacy
     • Customized lens, from Type I to Type V
     • Up to 5 years warranty
     • IP65 waterproof



Model

SPS40-SL32

SPS50-SL32

SPS60-SL32

SPS80-SL32

SPS100-SL32

SPS120-SL32

SPS150-SL32

SPS200-SL32

Wattage

40W

50W

60W

80W

100W

120W

150W

200W

Lumen Output

6000lm

7500lm

9000lm

12000lm

15000lm

18000lm

22500lm

29000lm

Luminous Efficacy

150lm/W

CCT

3000K/4000K/5000K/5700K/6500K

CRI

Ra≥70

Input Voltage

100-277 VAC

Housing Color

Light grey

Housing Material

Aluminum(ADC12), PC

Operating Temperature

-30°C to +45°C

IP Level

IP66

Lifespan

50,000 hours

Warranty

7 or 5years





Model

PCS/CTN

Net Weight

Gross weight

Volumetric Weight

CBM

SPS40-SL32

2

4.5kg

10.18kg

14.99kg

L715×W275×H305mm≈0.06³

SPS60-SL32

2

4.5kg

10.18kg

14.99kg

L715×W275×H305mm≈0.06³

SPS80-SL32

1

5.9kg

7.12kg

13.82kg

L770×W345×H200mm≈0.053³

SPS100-SL32

1

5.9kg

7.12kg

13.82kg

L770×W345×H200mm≈0.053³

SPS120-SL32

1

5.9kg

7.12kg

13.82kg

L770×W345×H200mm≈0.053³

SPS150-SL32

1

7.1kg

10.91kg

16.66kg

L850×W392×H200mm≈0.067³

SPS200-SL32

1

7.1kg

10.91kg

16.66kg

L850×W392×H200mm≈0.067³
