Patent design & Modular assemble LED Shoebox light 50W-300W

Model: SL27
Light efficiency: 160lm/W
Power watts: 50W, 80W, 100W, 150W, 200W, 300W
IP66 waterproof
7 years warranty
Description Product Data Test report Packaging


     •

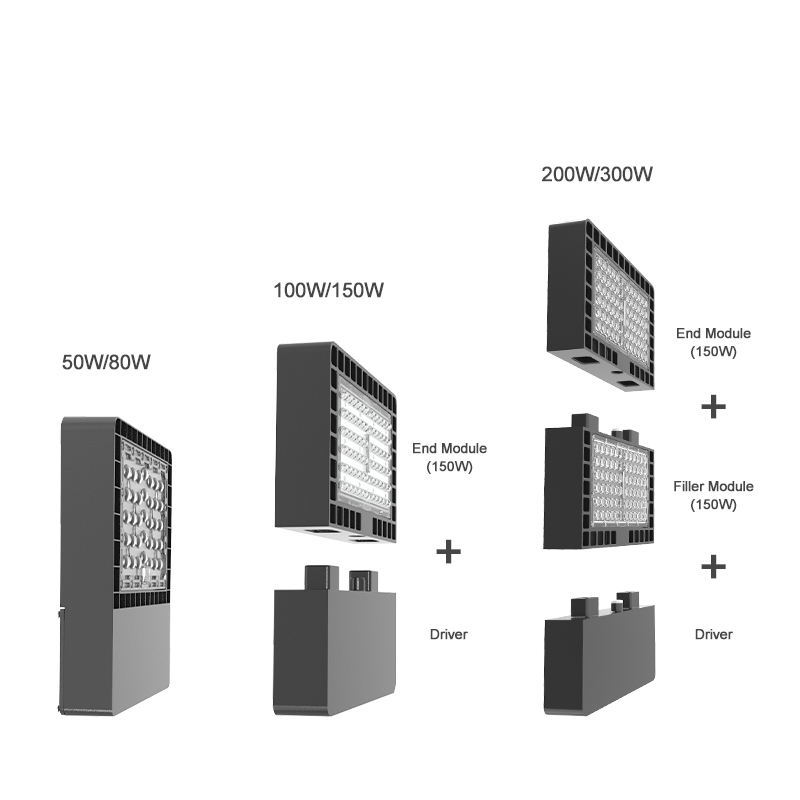

Patent design & Modular assemble
     • Die-casting aluminium with PC lens
     • Customized lens, from Type I to Type V
     • Picky surface treatment; excellent thermal design, Tj<70centidegree,
     • Support varied mounting demand
     •
7 years warranty for modular ;
     • Support multi-application demand,high mask light, parking lot light,street light,highbay light
     • Photocell optional, Dimmable available


Model SPS50-SL27 SPS80-SL27 SPS100-SL27 SPS150-SL27 SPS200-SL27 SPS200-SL27
Wattage 50W 80W 100W 150W 200W 300W
Lumen Output 8000lm 12800lm 16000lm 24000lm 32000lm 48000lm
Luminous Efficacy 160lm/W
CCT 3000K/4000K/5000K/5700K/6500K
CRI Ra≥70
Input Voltage 100-277 VAC
Housing Color Black/Brown
Housing Material Aluminum(ADC12), lens
Operating Temperature -30°C to +45°C
IP Level IP66
Lifespan 50,000 hours
Warranty 7 years
